Bolt Free Machine Mount - For Free-Standing Applications

Perfect for free-standing applications

Bolt Free Machine Mount is both an anti-vibration and levelling machine mount. This mount is specially developed for free-standing applications were stringent demands on effective vibration damping and sound cushioning applies. The Bolt Free Machine Mount is specially designed for use when lacking bolt holes or when bolt holes are inaccessible.

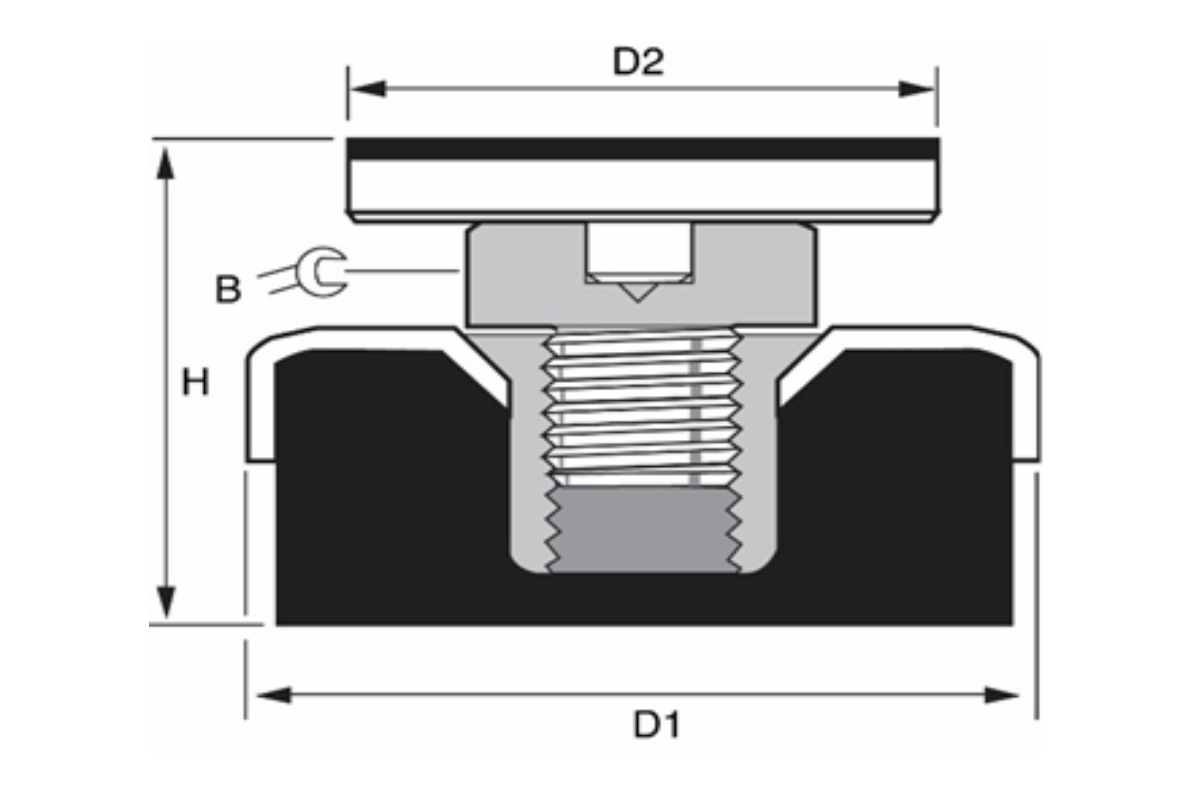

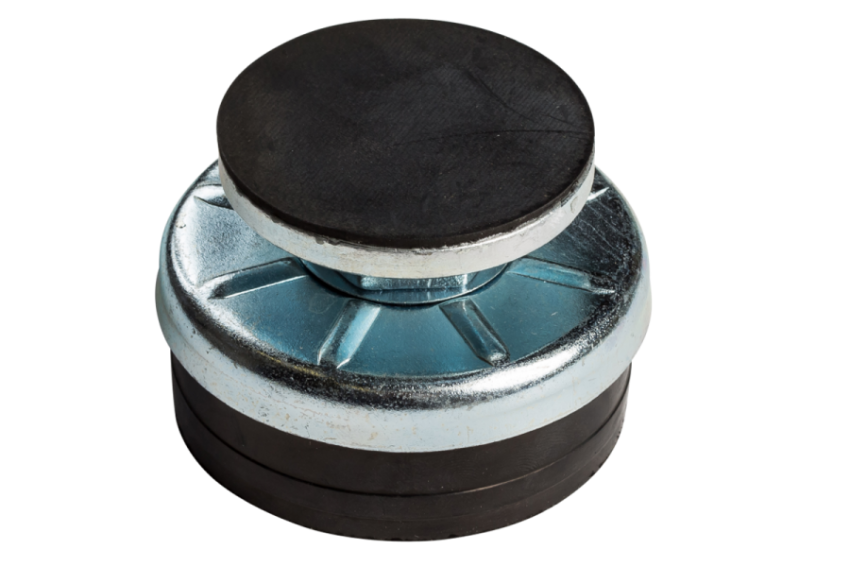

The Bolt Free Machine Mount consists of a galvanised pressure plate coated with high friction rubber, it rests on a levelling bolt built into a steel chassis and a thick nitrile rubber mixture damping element. The construction withstands most types of grease, acid, oil and coolants.

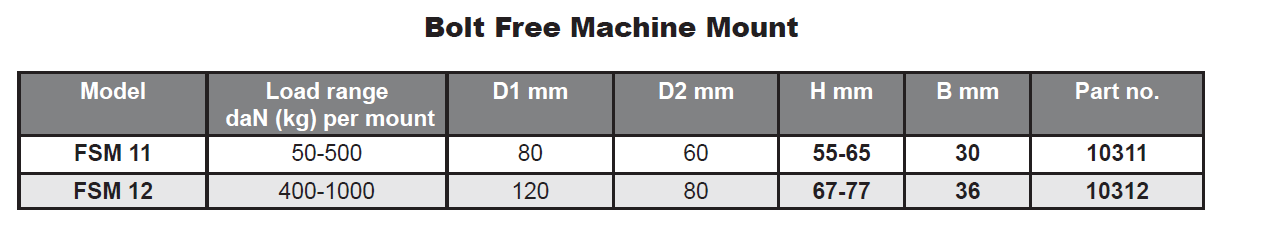

Download Bolt Free Machine Mount Specifications.
