Machine Mounts

Wedge Machine Mount - For Fine Heavy Duty Machinery Levelling

Wedge Machine Mount - For Fine Heavy Duty Machinery Levelling

Regular price $152.00 USD
Regular price Sale price $152.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Mount SKU

When precise and free-standing levelling is crucial

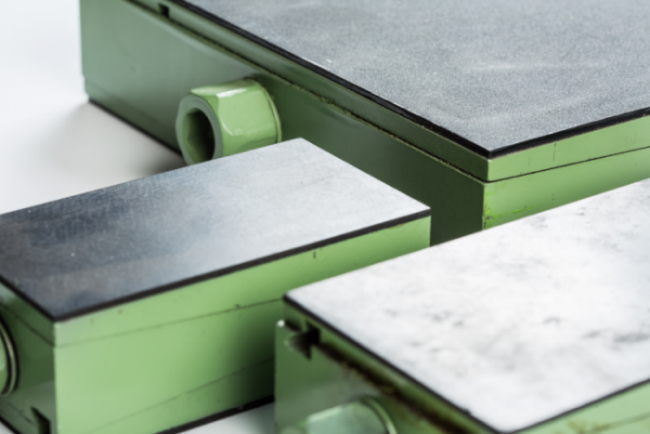

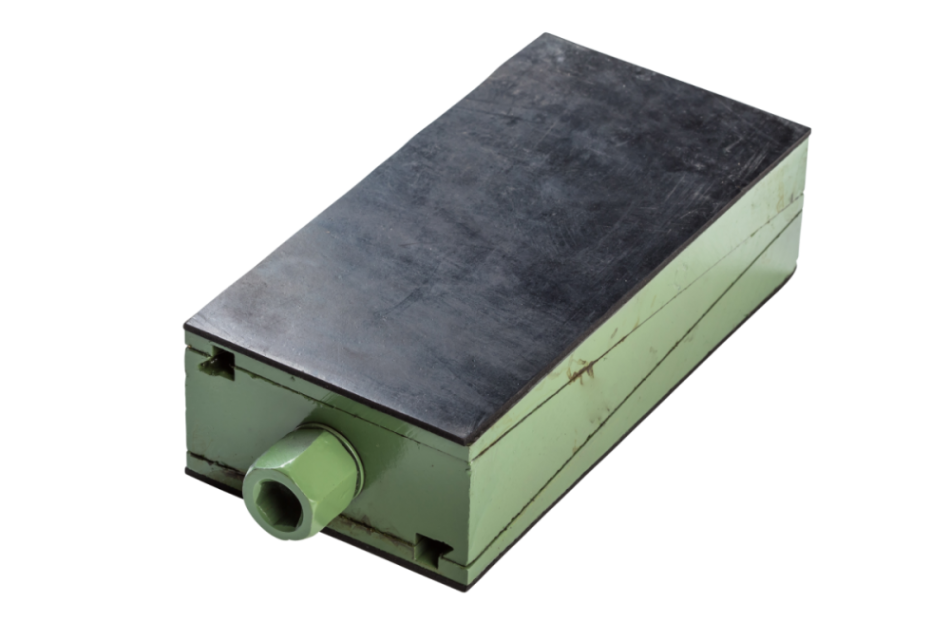

Wedge Machine Mount is a series of machine mounts specially designed for installing and levelling of medium and heavy-duty machinery used in areas such as the plastic-, engineering- and graphics industry.

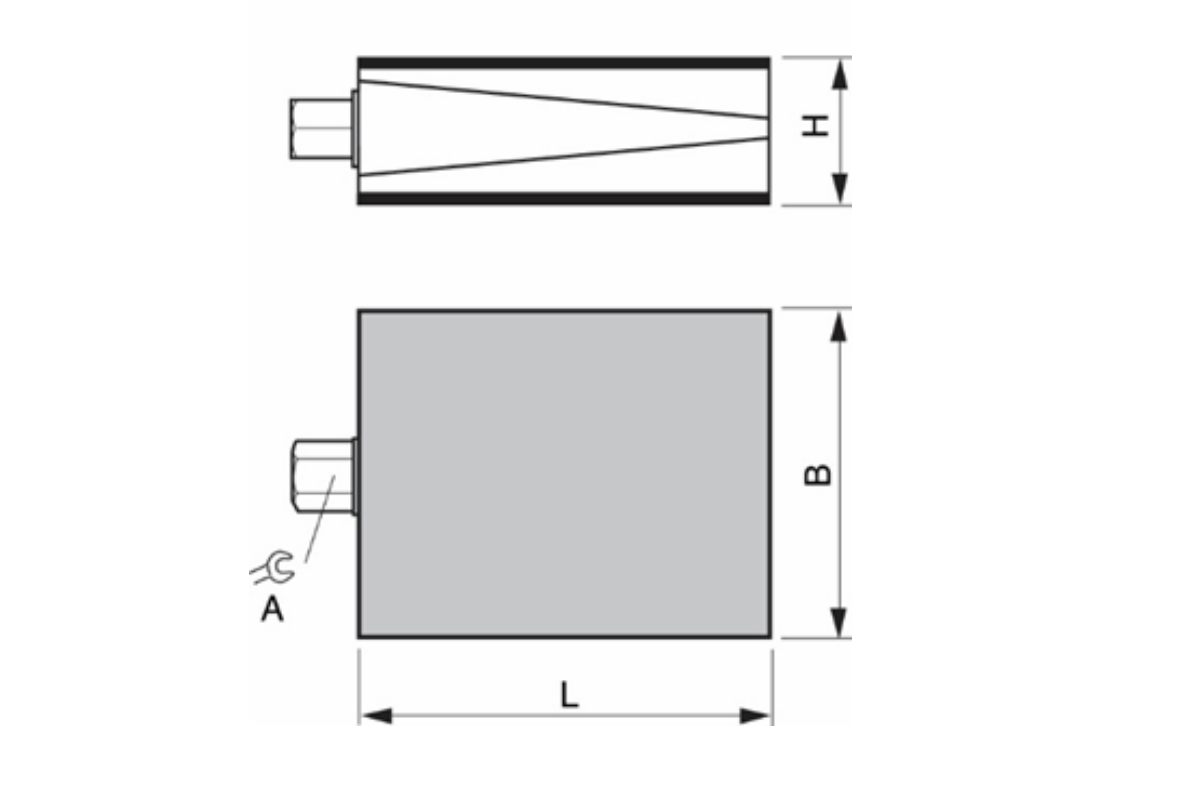

The Wedge Machine Mount system consists of a high precision levelling wedge with an accuracy of up to 1/100 mm.

Both sides of the wedge mount are coated with a 2 mm layer of high friction rubber that can withstand most types of grease, acid, oil and coolant normally used in industrial applications.

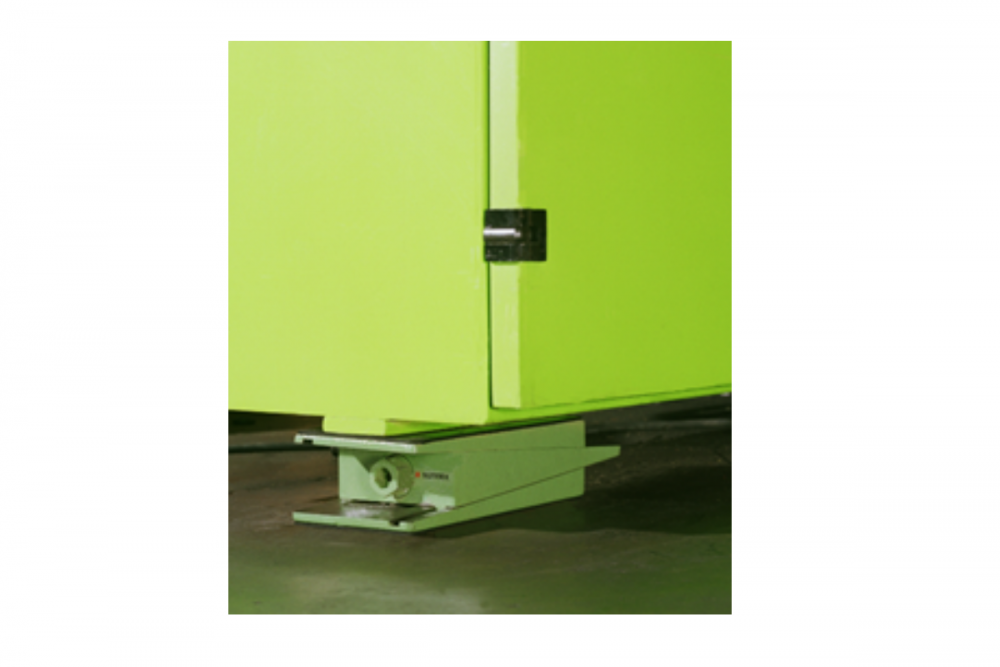

No fixing points are needed thanks to the well thought out design. The Wedge Machine Mount  can be placed anywhere under the machine and easily be levelled after installation, thanks to the wedge construction.
Levelling ability up to 24 mm.

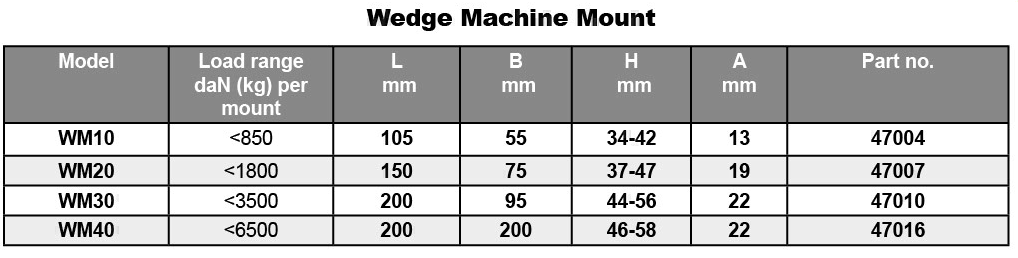

Download Wedge Machine Mount Specifications.
